Overview

Using RouterControl, Cisco Routers can be remotely configured through a secure pipe between the user's PC and the remote router's LAN port or the serial console port. All application can be run remotely even the ones meant to run only on the local console serial port. There's no operational difference between accessing a remote Router using RouterControl or traveling to the router's location since all functionalities are available just the same.

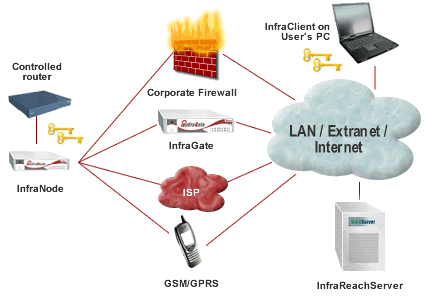

In a typical scenario, a router is connected to an InfraNode hardware controller through its serial console port.The InfraNode is able to connect an InfraReachServer using multiple paths, both IN-BAND and OUT-OF-BAND, depending on its configuration: normally, the InfraNode will work IN-BAND, reaching the InfraReachServer via the corporate LAN or the Internet.Optionally an InfraGate can be deployed in parallel with the company firewall to serve as a high encryption dedicated gateway operating only for the InfraReach connectivity, thus avoiding any re-configuration of the company's secutity setup.

In addition to the normal network connection, the InfraNode can be configured to use an OUT-OF-BAND PSTN analog modem dial-up connection to an internet service provider (ISP) or a GSM/GPRS connection as an emergency backup of the standard IN-BAND connectivity.

Once connected to the InfraReachServer, the InfraNode authenticates itself using the IP Power Technologies Security Standard that guarantees verification of the identity of the controller and the safe exchange of session keys.

On the operator's side, the technician's PC is running the InfraClient software that, using a 1024-bit RSA key, stored on a scrambled pas-phrase protected file stored on an removable USB memory device, is able to reach the InfraReachServer and authenticate itself just like the InfraNode does.

After both sides have successfully authenticated themself with the InfraReachServer, a secure tunnel is established over a direct IP connection between the InfraClient and the InfraNode, no matter what kind of connectivity is used between them (Local LAN or Internet).

At the same time, a virtual serial port is created inside the user's PC by the InfraClient: this port is mapped, through the secure IP tunnel where all data will transit fully encrypted, to the router's console port and any command sent to the virtual port will automatically reach the remote router. This way, any maintenance tool like Cisco Configurator is able to securely reach and operate the remote router by selecting the virtual serial port as the port the tool will connect to.

Access to the remote router's ethernet port is just as easy: the only difference will be the creation, on the technicians PC, of a virtual network interface instead of a virtual serial port and the remote router will be reachable by the maintenance tool through the encrypted IP tunnel.

Step-by-step to secure remote maintenance

Very few simple steps are required to the technician using  RouterControl to initiate a maintenance session on a remote router:

	1. The user navigates with his browser to the address of the InfraReachServer and logs in. The InfraReachServer's web interface shows a list of remote devices the user has rights to access. Overall, the web interface is as easy to use as a usual web site or portal.

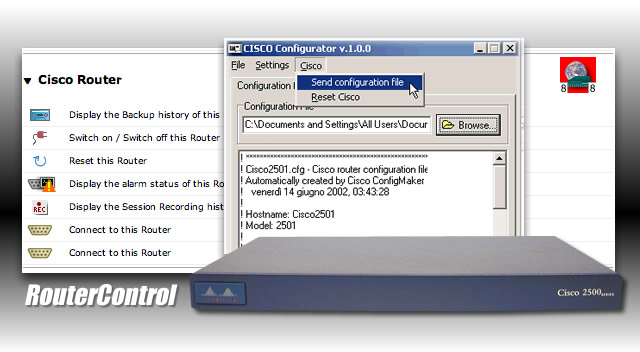

	2. Near to the name of the remote router he wants to access, the user clicks the "Connect to this Router" link. The virtual serial port is transparently created in the background.
	3. No additional operations are usually required to the user: any serial (or network in case of connection to the router's ethernet port) maintenance tool can be used on the virtual port just as if the connection were established locally using a standard cable.

The advantages of this approach are multiple: first, the connection to the remote router is completely automated and secure. In addition, all devices are managed centrally making it easier than ever to maintain any large IT/TLC infrastructure. Access mode is fully customizable allowing the user to choose the most appropriate tool for each different router.

RouterControl also supports a complete range of alarming functionalities triggering selected events as they happen. Any fault is immediately tracked by the InfraNode connected to the router and all collected data is sent to the InfraReachServer where all details about the state of health of the device are available.

This functionality is key to prevent critical or even dangerous situations by making technicians aware of the incoming problem on time thanks to the alarm notification via email or even SMS: a fine-grained configuration of the alarm reaction is available on a customizable alarm severity basis.

Connecting to the InfraReachServer with his Internet browser, the user has immediate visibility on the state of health of the monitored routers. In addition, a complete history of the alarms is available along with a detailed view of each alarm. The technician can also handle each single alarm or groups of alarms and store and track all the intervention made to solve the fault. This means auditing and controlling easily and reliably.
